Portal mower Working width 196 cm

MOW-PT 196

#savebeesandbugsLawn care meets species protection

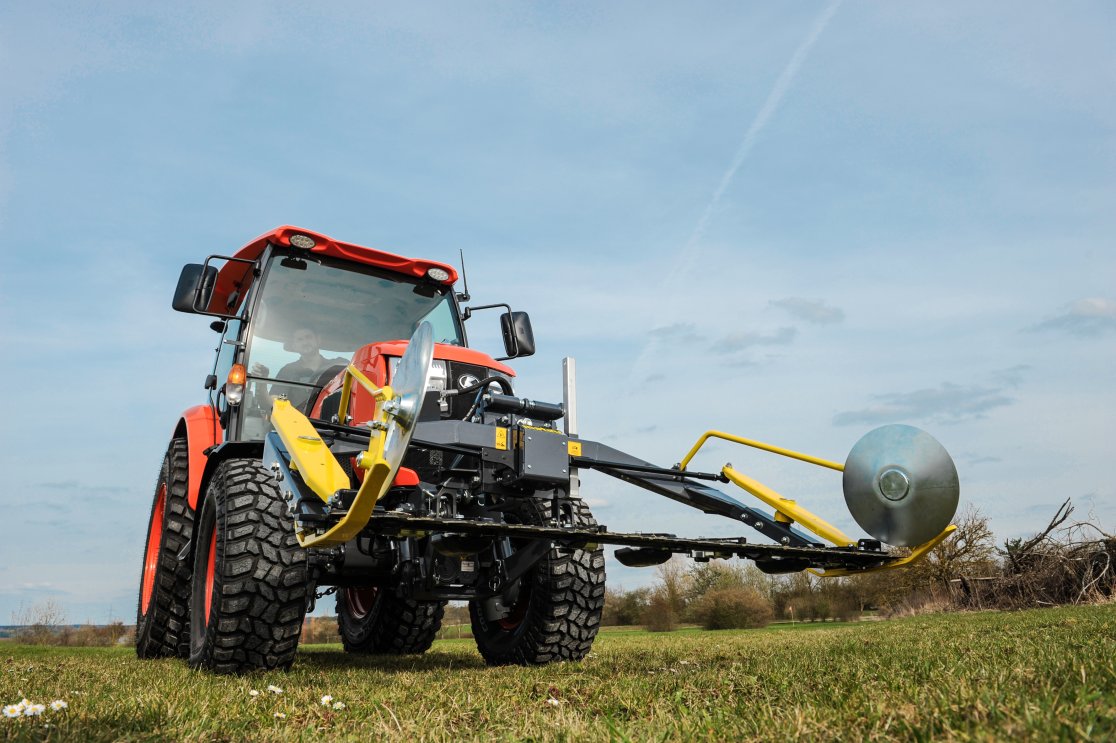

The MOW-PT revolutionizes green care by making it possible for the first time to mount a portal mower on municipal tractors. This insect-friendly mowing technology takes the maintenance of municipal green spaces to a new level in terms of species protection. Equipped with low-vibration operation and special ball bearings, it promises a long service life. The special feature is the counter-rotating drive of the blades, which ensures a uniform cutting quality. The mower can be tilted to adapt to different terrain conditions. With fixed grinding soles and a cutting height of 4.0 cm, it is ideal for efficient green maintenance.

HighlightsAdvantages and features

Pros and cons? With us there are only pros.

The perfect cut

The DUROCUT® double blades made of hardened steel ensure smooth operation thanks to their precise manufacturing. The durable blade head with proven ball head is flexibly mounted, while the specially hardened and weight-optimized blade back extends the blade's service life. The DUROCUT® beams offer outstanding cutting performance thanks to the parallel mounting of skids, retaining brackets and spring brackets, which prevent tilting or lifting.

Grass separation

A grass cutting bar or grass cutting discs for taller grass are available to optimally raise the crop for the mowing process and guide it into the mowing track. This ensures a blockage-free and clean grass flow.

Adjusting the cutting height

Optional extensions are available to adjust the cutting height. The skid plate extension adjusts the cutting height to 6 cm, the biotope extension increases it to 10 cm.

Facts & Figures

Downloads
Dimensions (L/B/H)
1.280 x 2.130 x 590 mm
Weight without accessories
ca. 151 kg
Cutting width
1.960 mm
Cutting height
40 mm
Blades
Durocut® double-blade bar
Drive type
hydraulic
Grass separation
Grastrennbügelopt.
Grastrennscheibenopt.
Attachment variants
Cat. 0
Cat. 1
Cat. 1 with catch hooks
Scanframe
Options
Elevation for skid (to 6 cm)opt.
Biotope elevation (to 10 cm)opt.
Mower blade sharpeneropt.
Spare knivesopt.
Knife guardopt.
